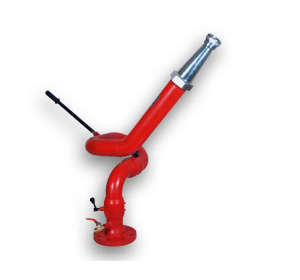

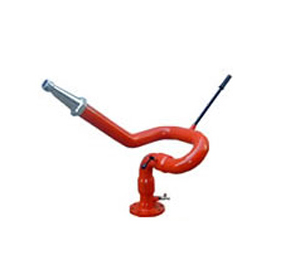

Water Monitors are durable units suitable for the
protection of Flammable Liquid Storage Tanks. It can
be used for fixed installation as well as for
trailer mounting. These monitors have a flow rate of
1750 / 2580 / 3750 LPM at 7 Bar.
| Material | Carbon Steel | Carbon Steel | Carbon Steel |
| Maximum Operating Pressure | 12Bar (175psi) | 12Bar (175psi) | 12Bar (175psi) |
| Flow Rate | 1750 LPM @ 7 Bar | 2580 LPM @ 7 Bar | 3750 LPM @ 7 Bar |
| Throw Range | 55 Meters | 55 Meters | 67 Meters |
| Inlet Flange | 100 NB (4") Raised Flange ANSI B 16.5150# | 100 NB (4") Raised Flange ANSI B 16.5150# | 150 NB (6") Raised Flange ANSI B 16.5150# |
| Monitor Outlet |
75 NB (3') water way. Jet Nozzle Optional: Jet - SprayNozzle |
75 NB (3') water way. Jet Nozzle Optional: Jet - SprayNozzle |
100 NB (4") water way. Jet Nozzle Optional: Jet - SprayNozzle |
| Monitor Movement | Vertical Movement - Manual Swivel Operation with Lock Horizontal Movement - Manual Swivel Operation With Lock | Vertical Movement - Manual Swivel Operation with Lock Horizontal Movement - Manual Swivel Operation With Lock | Vertical Movement - Manual Swivel Operation with Lock Horizontal Movement - Manual Swivel Operation With Lock |
| HydrostaticTest Pressure | 23 Bar | 23 Bar | 23 Bar |
| Monitor Rotation | 360° continuous | 360° continuous | 360° continuous |
| Monitor Elevation | `+90° above horizontal -45° below horizontal | `+90° above horizontal -45° below horizontal | `+90° above horizontal -45° below horizontal |
| Finish | Red Poiyurethane | Red Poiyurethane | Red Poiyurethane |
