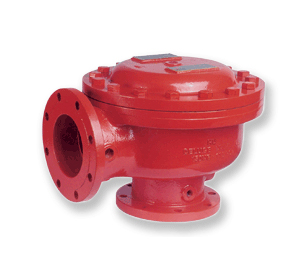

Deluge
Valve is known as a system control valve in a deluge
system, used for fast application of water in a

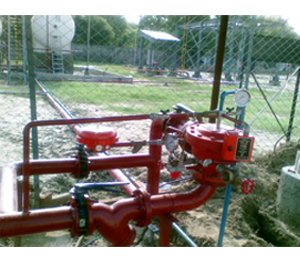

spray system. Deluge valve protects areas such as
power transformer installation, storage tank,
conveyor protection and other industrial application
etc. With the addition of foaming agent deluge valve
can be used to protect aircraft hanger and
inflammable liquid fire.
| NOMINAL SIZE | : | 200, 150, 100,80 S50NB |
| MAXIMUM SERVICE PRESSURE | : | 12 Bar [175 PSI] |
| THREADED DPENING | : | BSPT |
| MOUNTING | : | 90° pattern inlet go outlet vertical mounting |
| FLANGE | : | ANSI B 16.1 FF# 125 |
| CONNECTION | : | [Flange drilling matching to ANSI B 16.5 #150] |
| FINISH | : | Red RAL 3000 |
| APPROVAL | : | UL Listed |
